DronesSonda Quad Multipurpose Multirotor

SKU: N/A

2,500.00

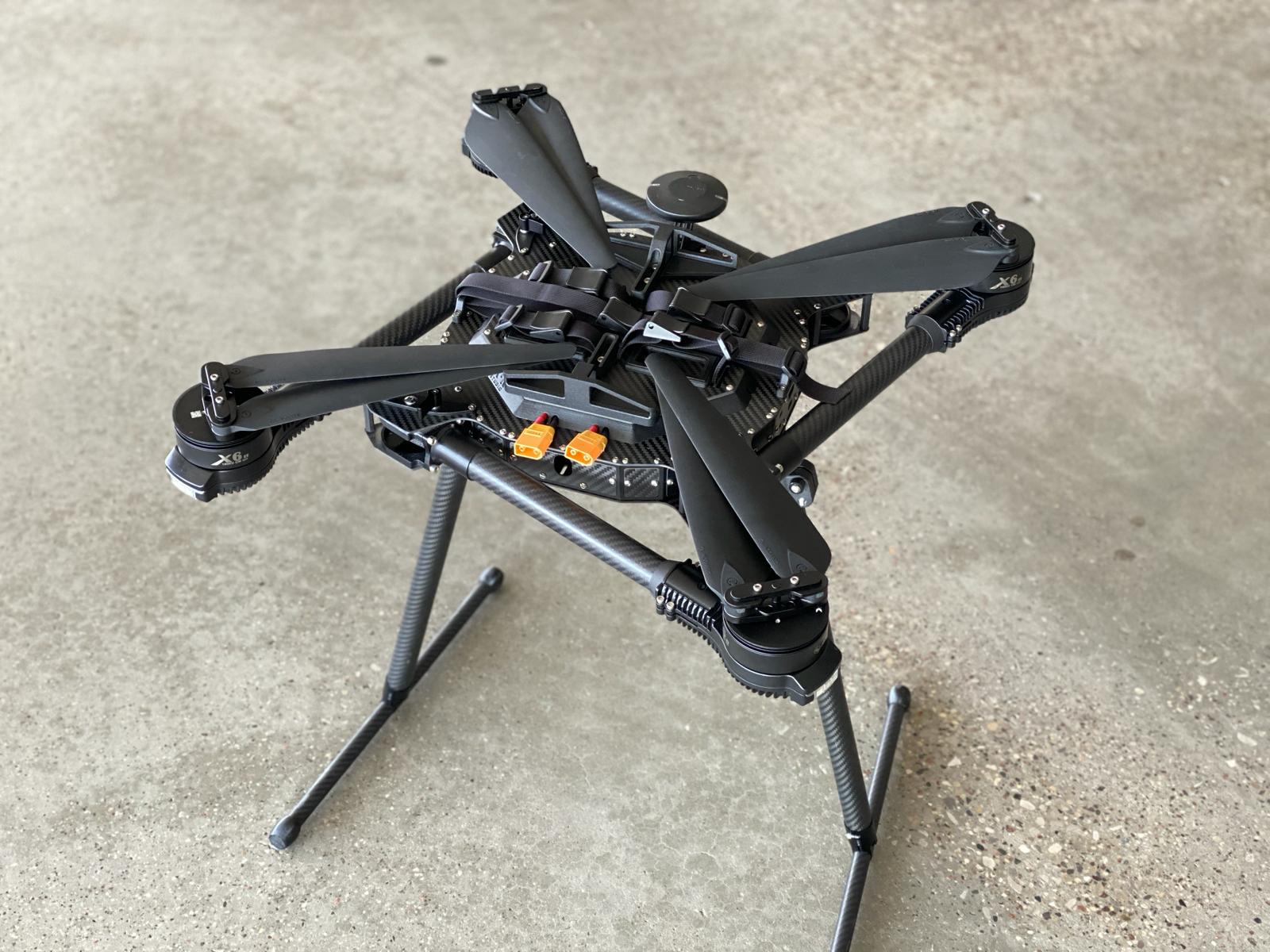

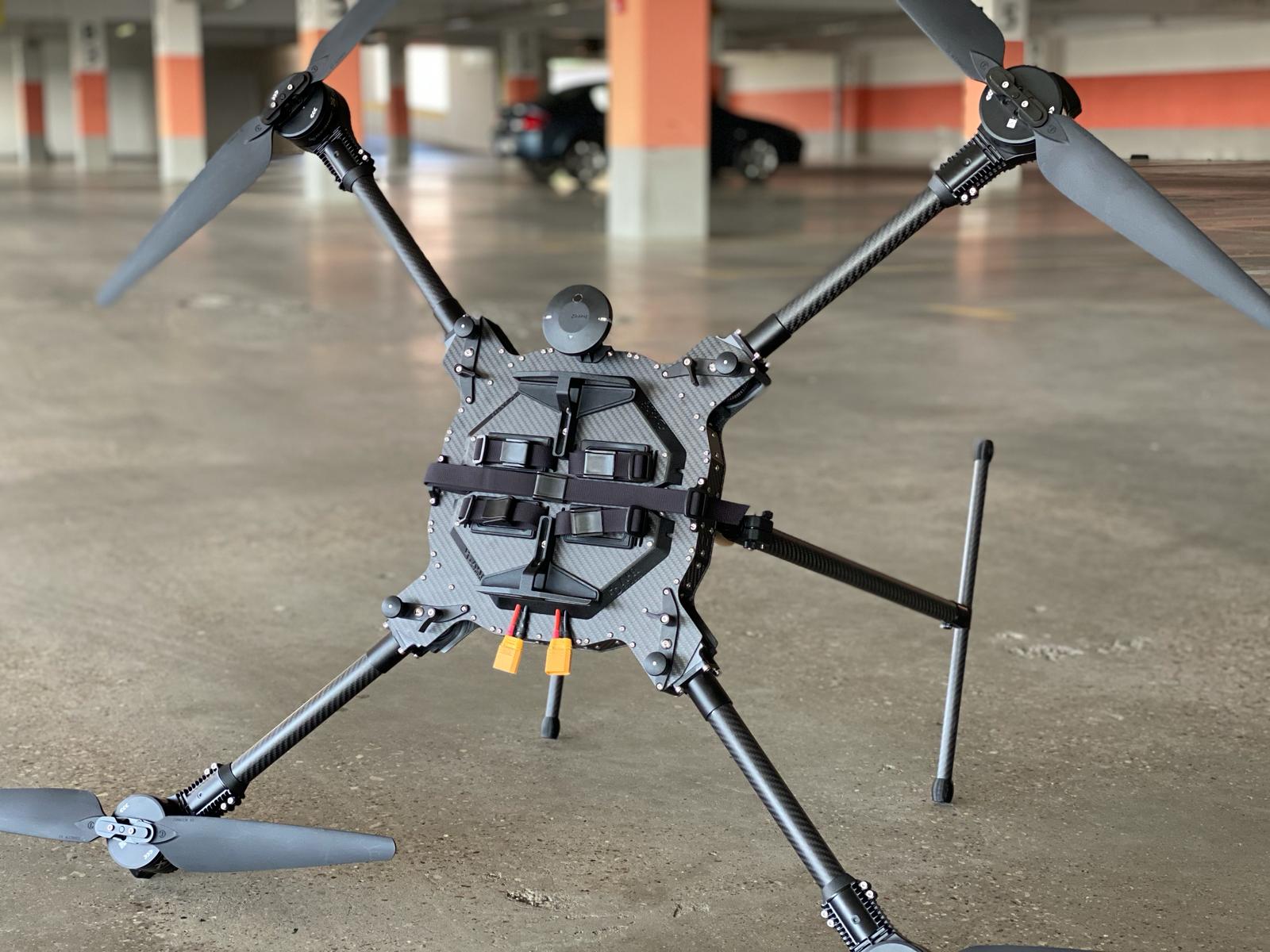

Sonda is a multipurpose, professional quadcopter multirotor. Thanks to its folding arms, Sonda is very convenient to transport. This platform is designed to mount different peripheral devices.

  • Description
  • Additional information

Description

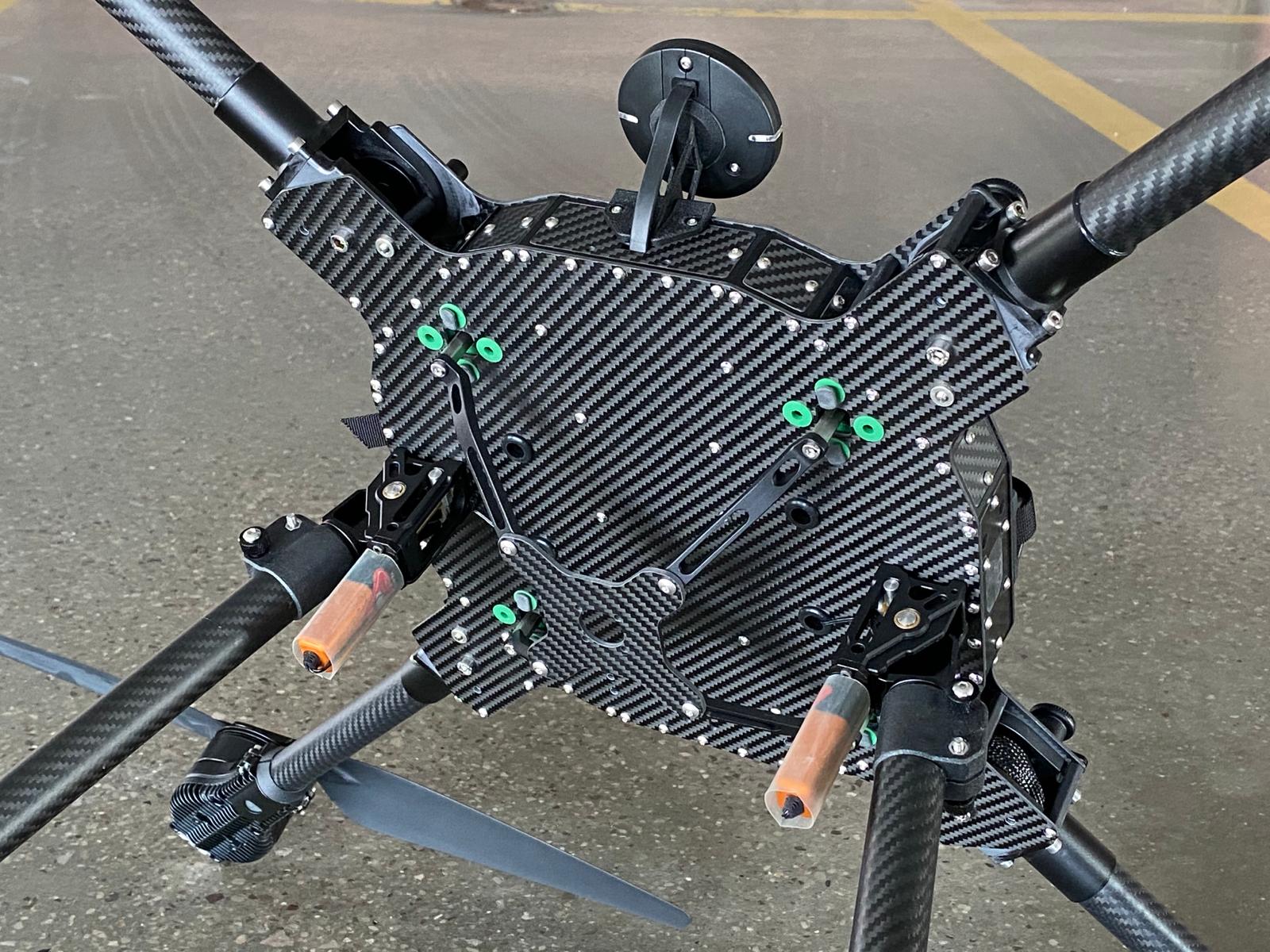

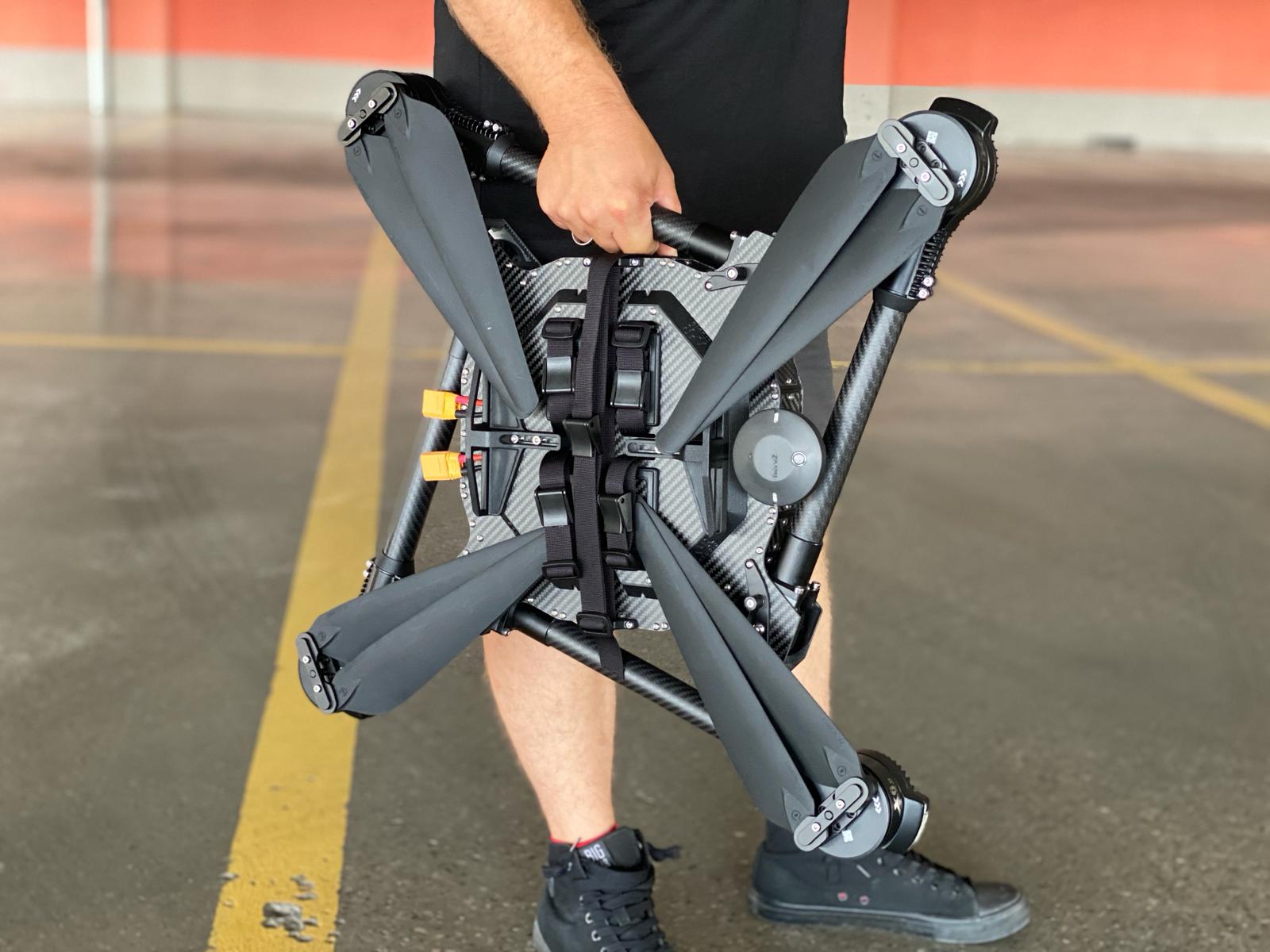

Sonda is a professional quadcopter designed and produced in Poland by HD Air Studio (All rights reserved). Four arms are made out of reinforced carbon fiber tubes. The folding arms mechanism is equipped with double locking system. Due to its foldable construction, Sonda is very convenient to transport.

Sonda multirotor can be equipped with Pixhawk, DJI or other brands flight controllers. The drone can be equipped with FPV WDR camera, which allows BVLOS flights and helps a pilot define the flight direction. This platform is designed to mount different peripheral devices.

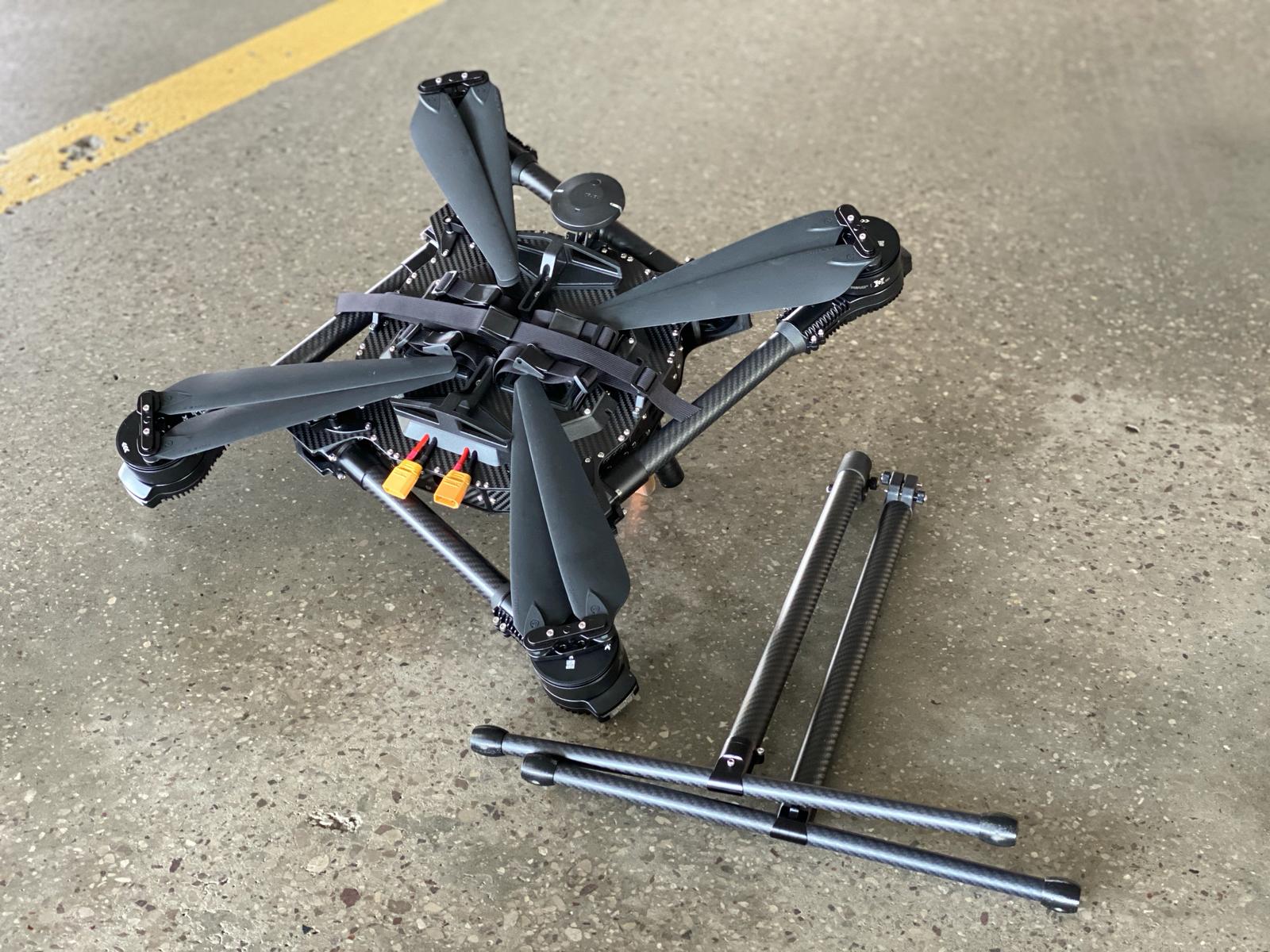

  • Landing gear: rectractable or fixed with a quick release connector for fast disassembling

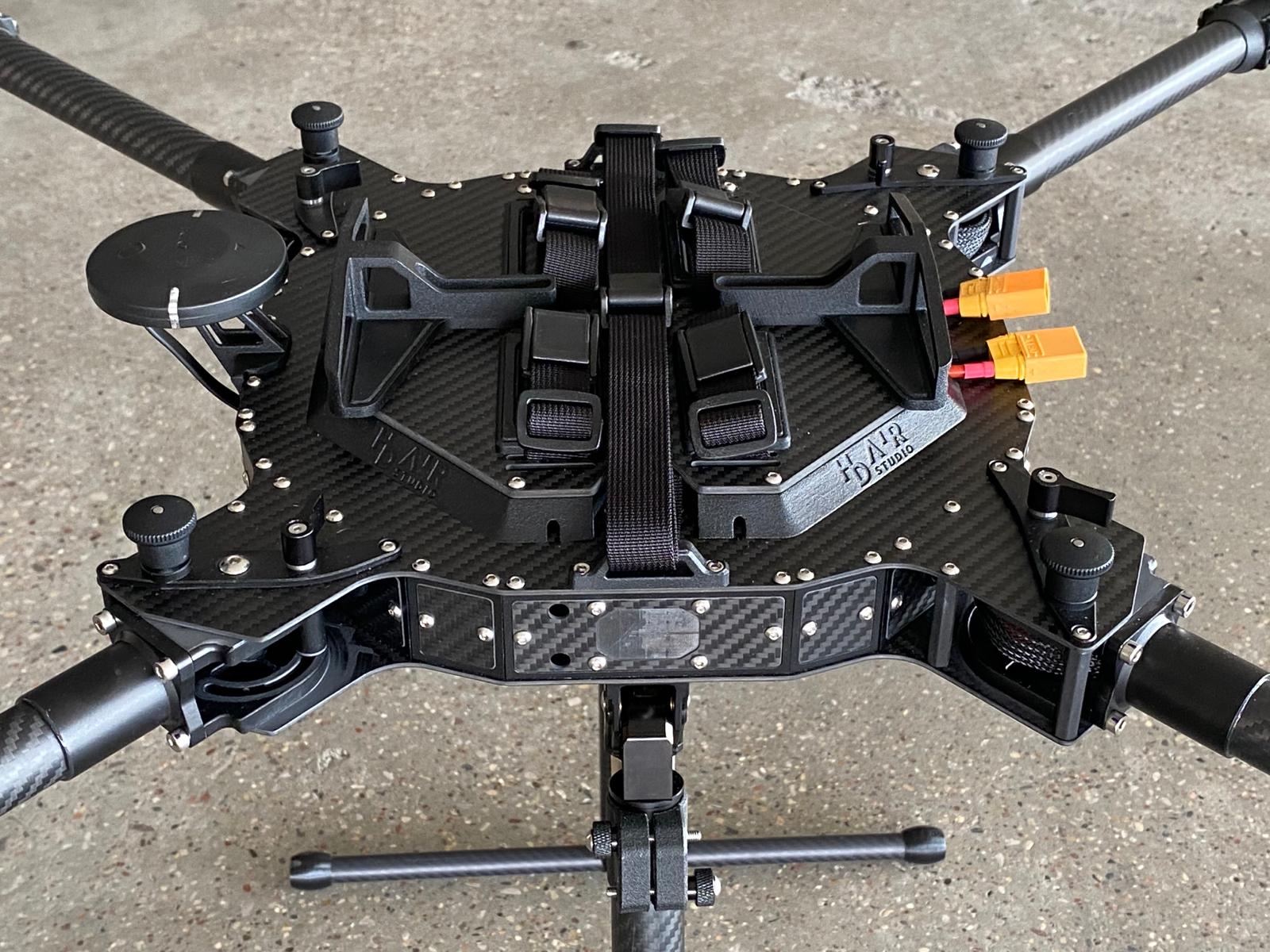

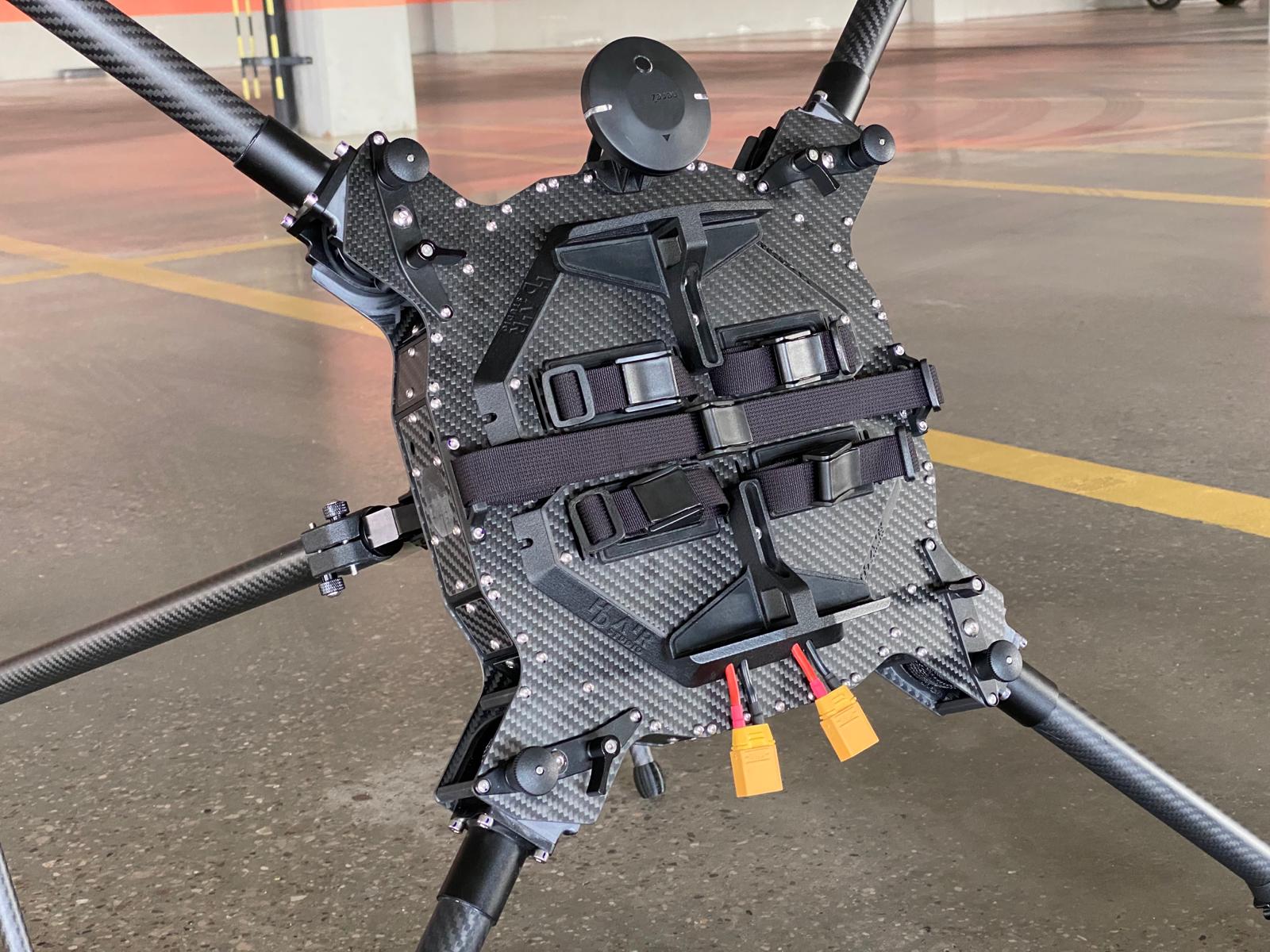

  • Battery mounting: on the top of the frame
  • Dust & water resistance : IP54
  • Built-in LED lights: optional:  2 x green, 2 x red
  • Built-in FPV camera: yes, as an option
  • Battery plugs: XT90 (can be modified)
  • Power source for external devices: optional: 12V/3A, 5V/3A and 16V/3A as an option
  • Quick release for payload (gimbal): optional: available on request
  • Damping system: built is center body of a frame
  • Suggested payload: 2.5-6kg
  • Suggested battery: 2x 6S 10-22.000mAh
  • Autopilot options: Pixhawk 2.1, DJI A3, DJI A3 PRO, DJI N3.
  • Suggested motors, esc, props: any propulsion system that supports 15-23″
  • Flight time (10970g AUW) with 2x 16000mah and 10% battery capacity remaining: 22min. With 2 x 22000mah: 26,5min.
  • Customization available
  • Drawings and detailed dimensions available for special request

Please note that the specification of the electronics listed above might be different for different type of applications. The frame of the drone allows to make modifications for special customer requests.

HD Air Studio offers only empty frames of the Sonda Quad, ready to install all the equipment.



Additional information

Wheelbase (motor to motor)

968 mm

Outer frame dimension

815×815 mm unfolded/ 505×505 mm folded

Height

505 mm (to the upper QR mount)

Height under main body (payload space)

310 mm

Empty frame weight with landing gear and housing

2383 g

Diameter inside center body

255 mm

Height inside center body

36 mm

Maximum top propeller diameter

21” (arm can be extended for bigger prop)

Maximum bottom propeller diameter

21”

RTF weight (excluding battery and payload; including all the electronics, autopilot, motors, ESC, props, etc.)

6125 g
